Architectural Partition Walls & Gates

Glass or acrylic barrier walls secure restricted areas and define open ones, with gates for controlled access. Brushed stainless steel posts and details such as kick plates bring a polished architectural finish to your interior and exterior spaces.

Let's Plan Your Project

Walls You Can See (and Walk) Through

Marine-grade stainless steel posts and glass or acrylic walls give your space a finished boundary that looks like a natural part of the building, yet can change when the space does.

No Construction, No Downtime

The wall is assembled from prefabricated posts, so teams can build, extend, or remove it without framing, drywall, or shutting the space.

Access Control

Integrated gates control access within a continuous barrier, then lock when the area closes.

Visual and Physical Separation

Clear glass keeps sightlines open. Frosted or tinted walls add privacy. Tall walls stop anyone from reaching over or handing items across.

Indoor and Outdoor

316-grade stainless steel posts resist corrosion, from terminal concourses to outdoor terraces.

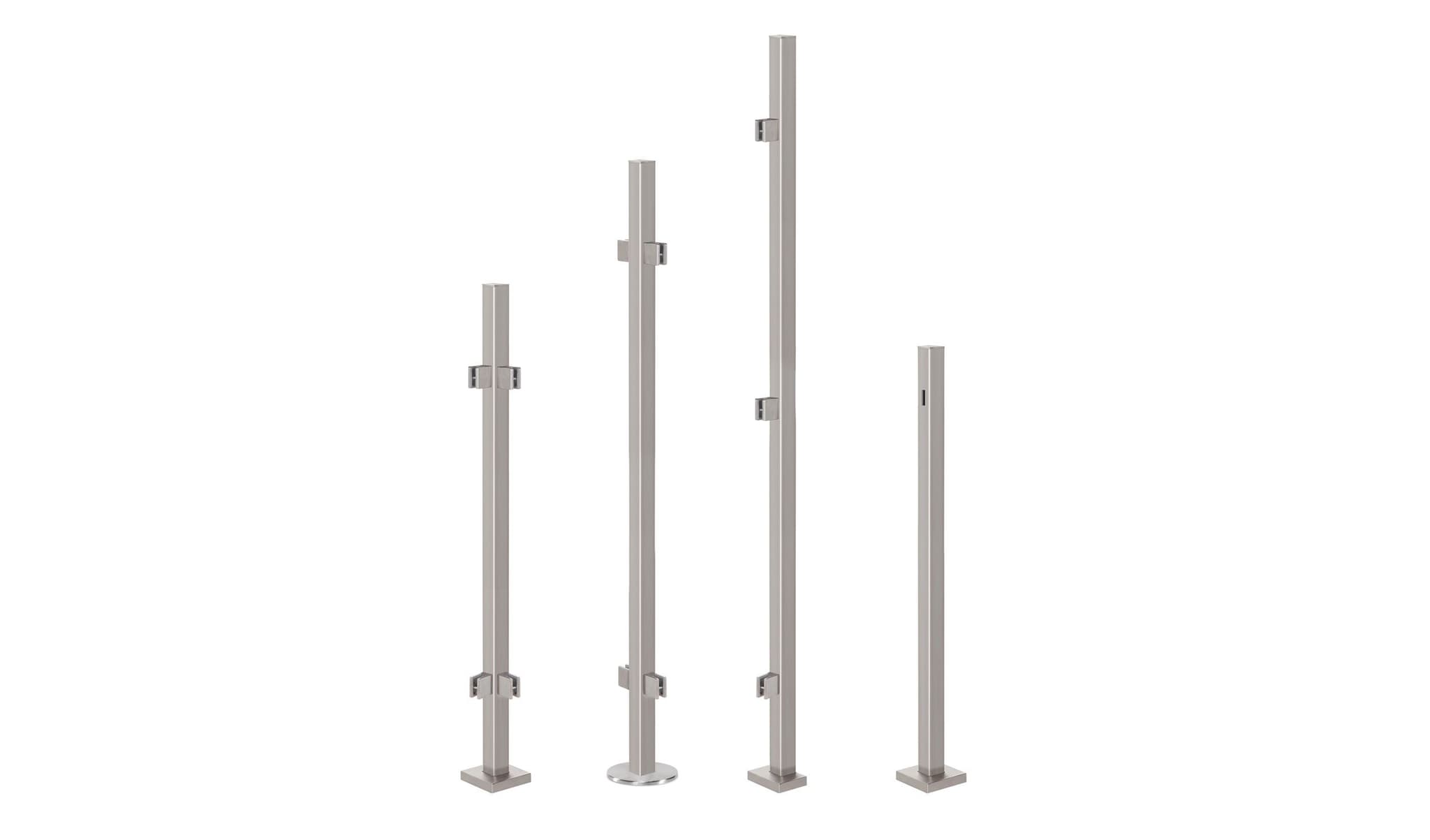

Architectural Partition Walls post heights and styles
Stainless Steel Posts

Four Heights, Four Styles, Endless Possibilities

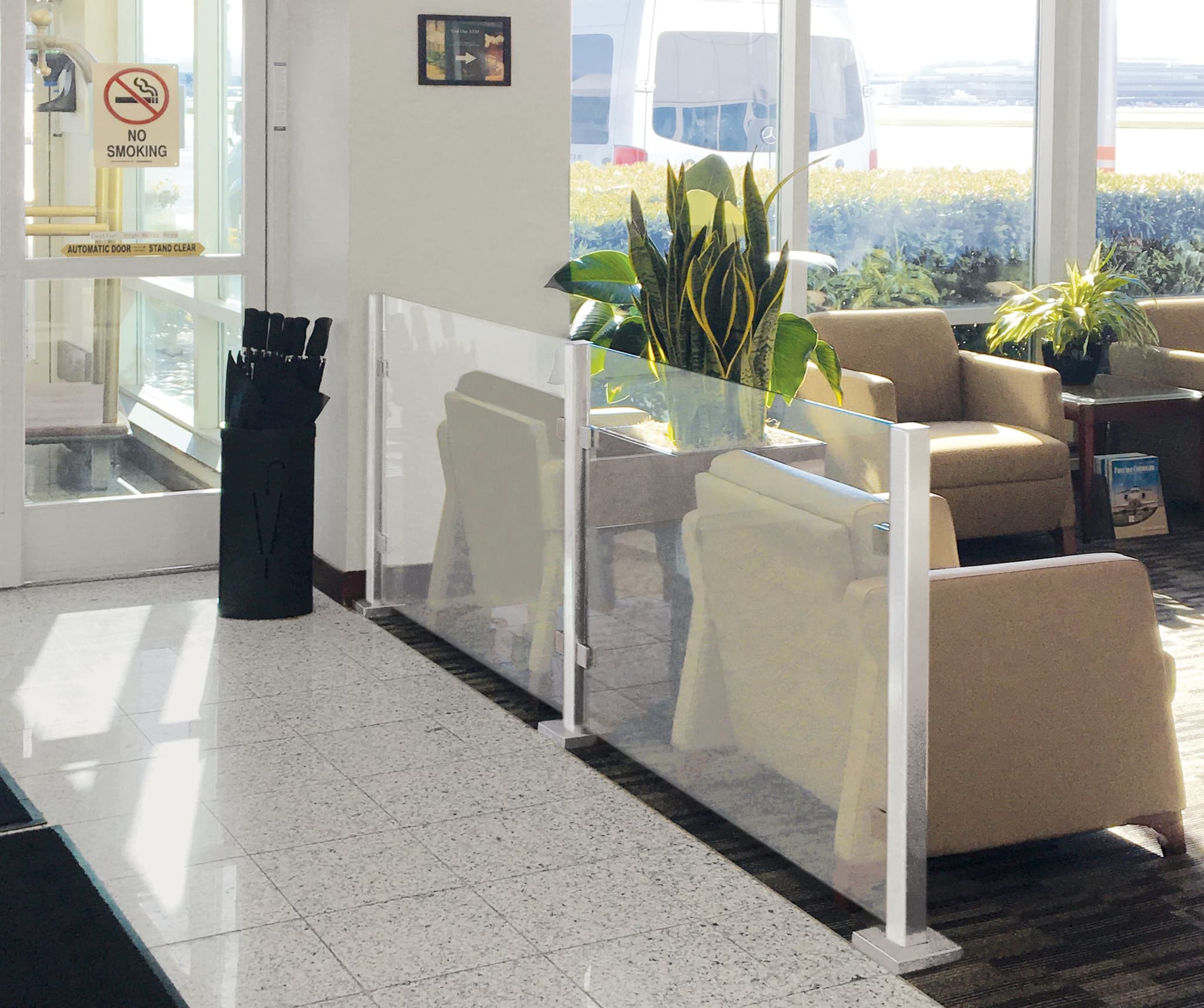

Four standard heights fit most project needs. At 42 and 48 inches, partition walls define seating areas and guide movement without blocking sightlines. At 60 and 72 inches, they secure restricted areas, with gates controlling access. Custom heights are also available. Contact us for more details.

Four post types build any layout. End posts finish a run, center posts continue it, corner posts turn it, and receiver posts accept a latch or lock.

Bolt It Down or Leave No Trace

Some installations call for a permanent anchor. Others can't take a drill bit at all. Three mounting options cover the range.

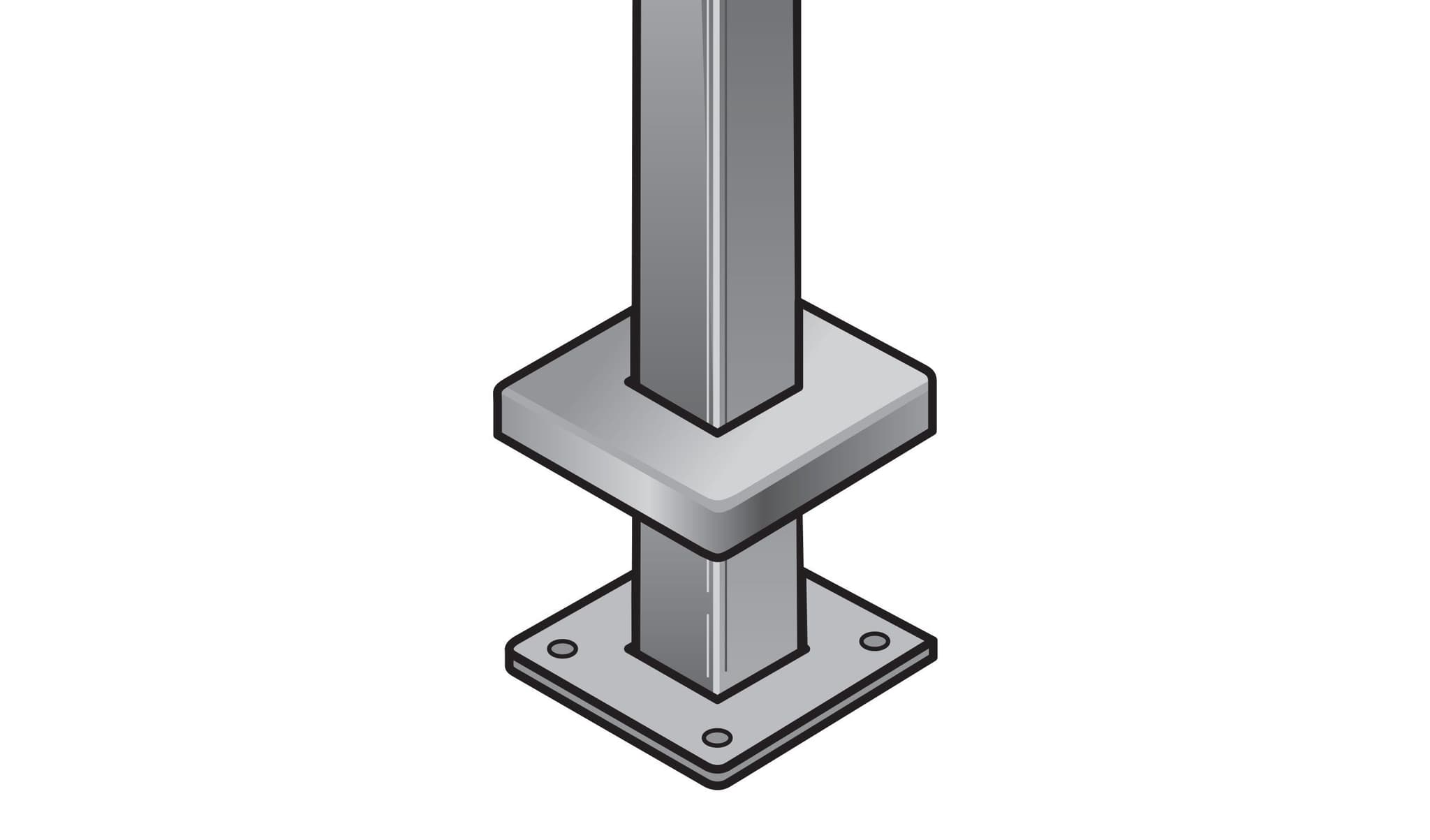

Partition Wall Post Square Flange

Flange Mount

A 5.1-inch square flange bolts the post directly to the floor through four anchor points. The standard choice for walls that stay put, available at every height.

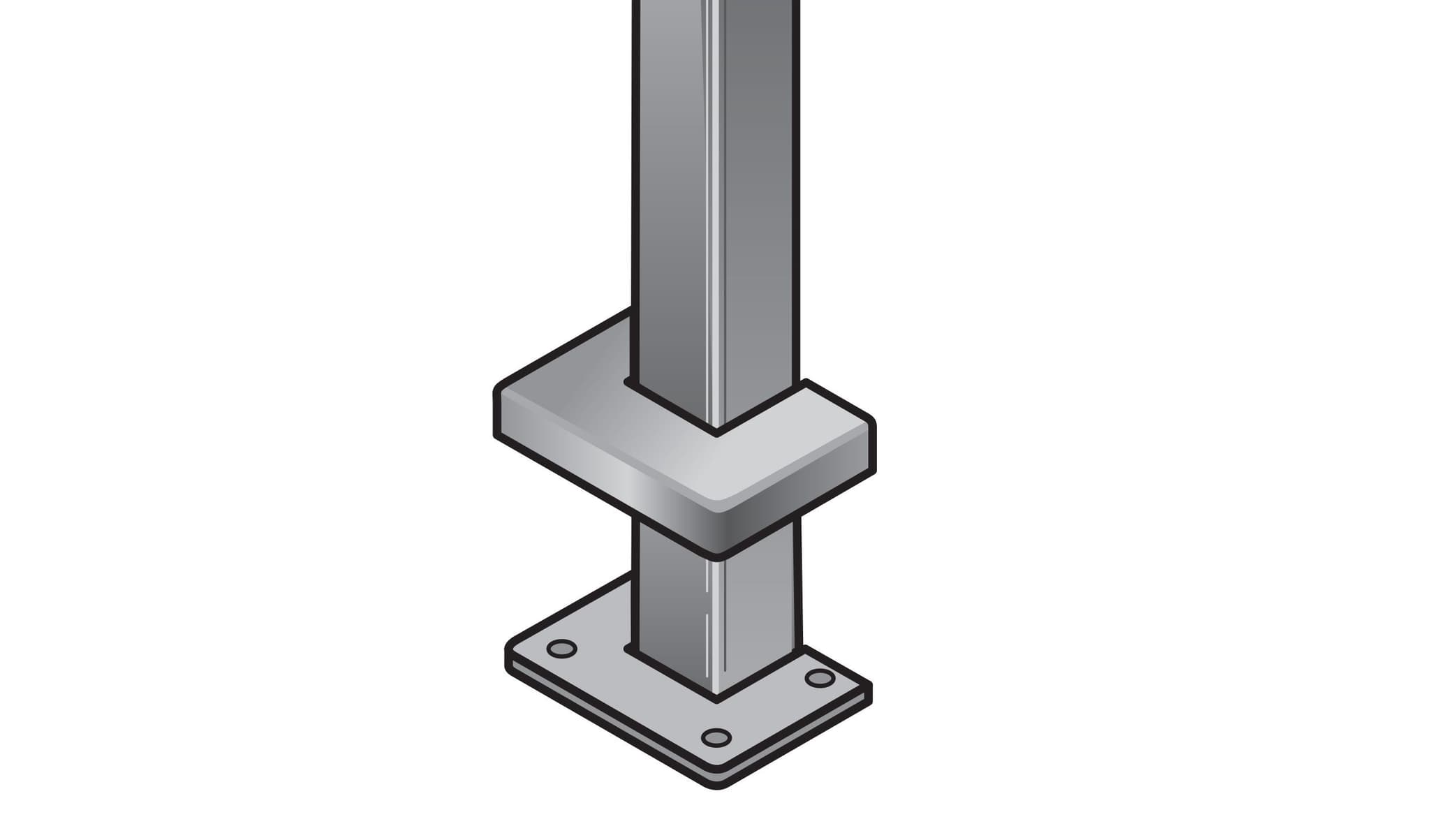

Partition Wall Post Cut Flange

Cut Flange Mount

A narrower 3.5-by-5.1-inch flange lets a post sit tight against a wall or column. Use it where a full flange won't fit the space.

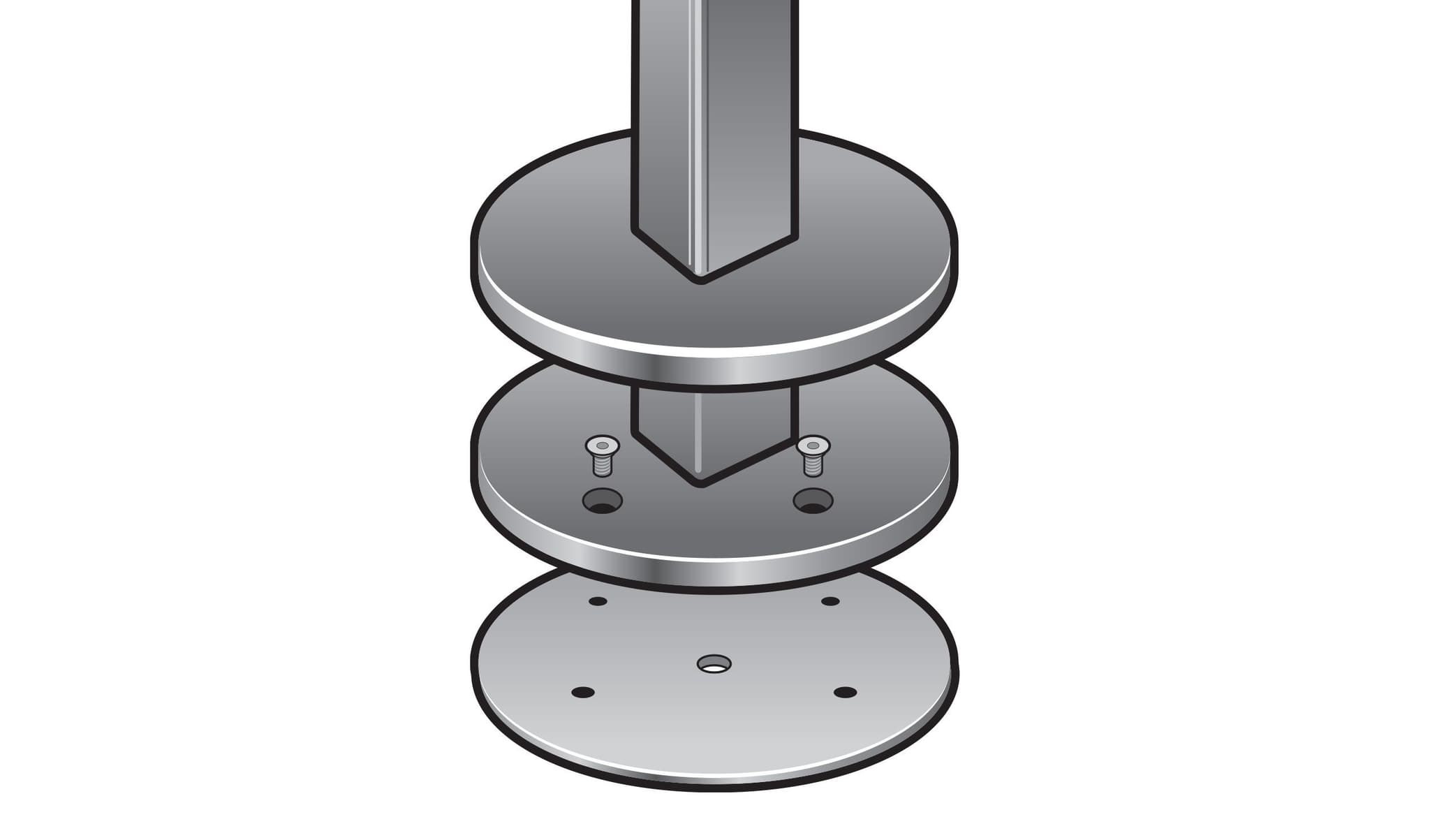

Partition Wall Post Magnetic Mount

Magnetic Mount

No drilling of any kind. A steel plate adheres to the floor, the magnetic base locks on, and a cover plate conceals the hardware. Available on 42 and 48-inch posts.

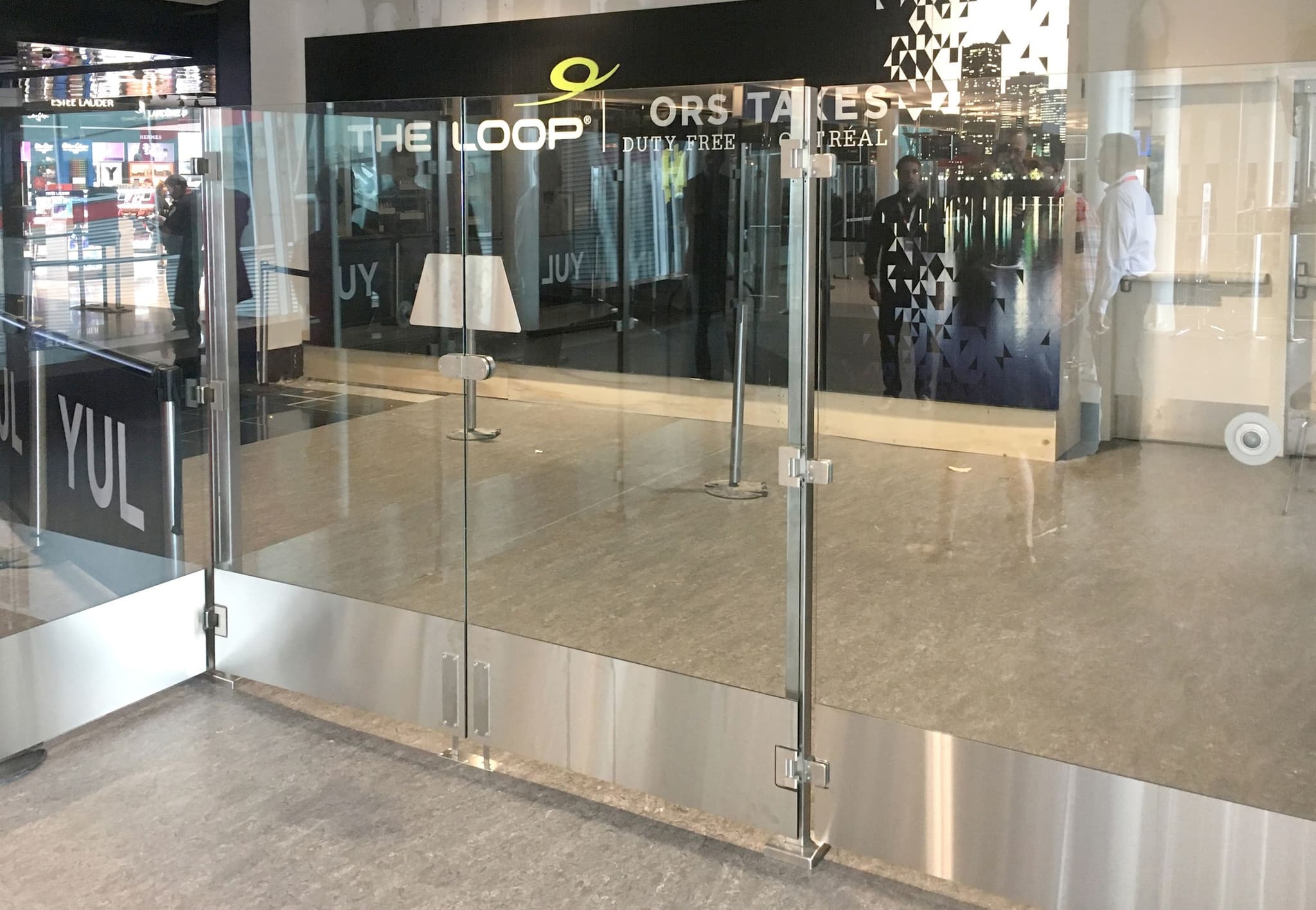

Tall glass Architectural Partition Walls with an access gate enclose a retail space inside an airport terminal.

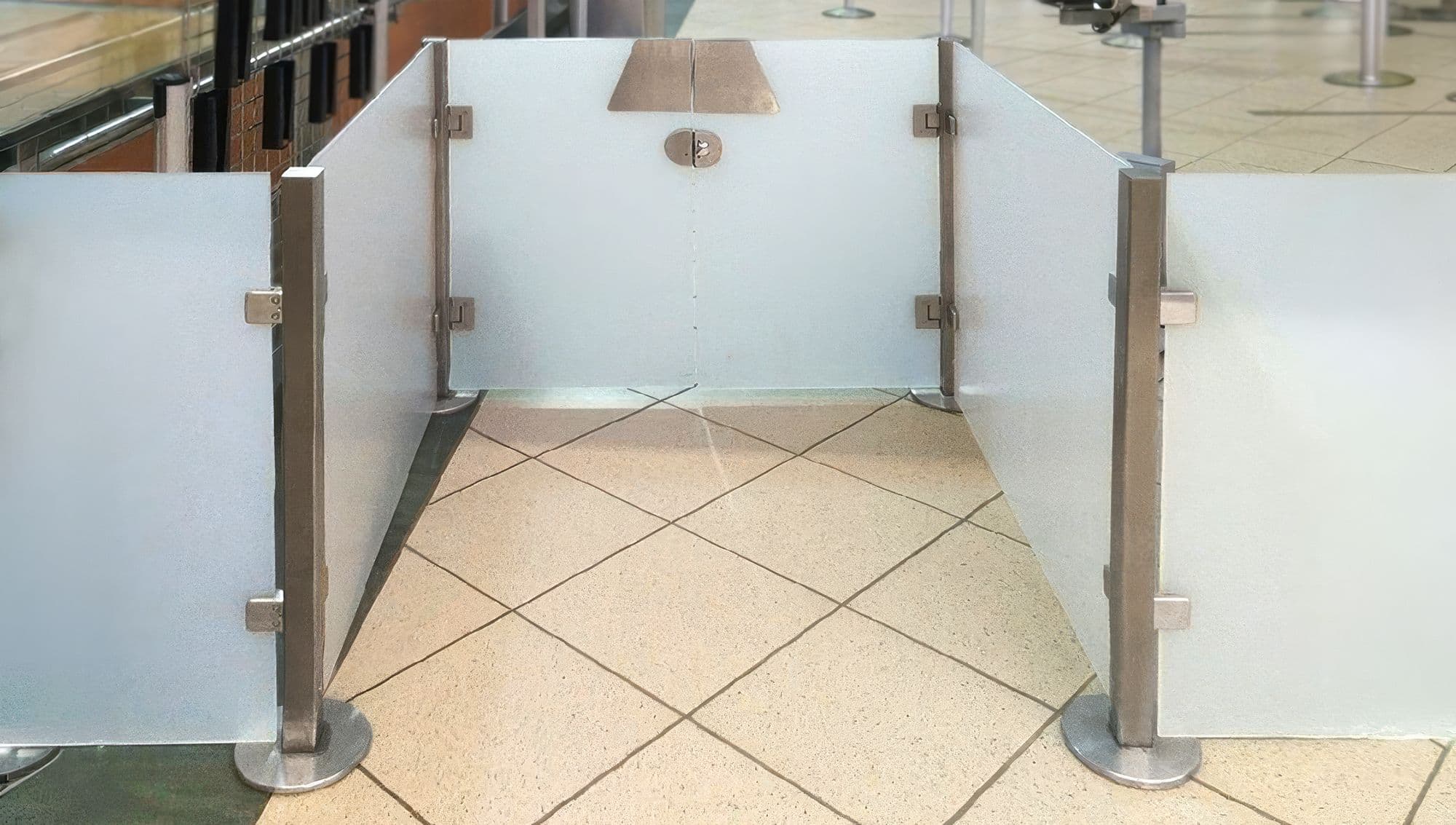

Locking Gates Provide Controlled Access

Gates integrate anywhere within the run, creating a cohesive look. They swing in both directions, then close and lock by hand. Pair two gates that meet in the middle for a wide opening.

  • 24, 32, or 40 inches wide, single or double
  • Key lock gate latch or 6- or 8-inch sliding latch
  • Kick and push plates for high-traffic entries

Accessories That Do Real Work

Tailor the details to your operation.

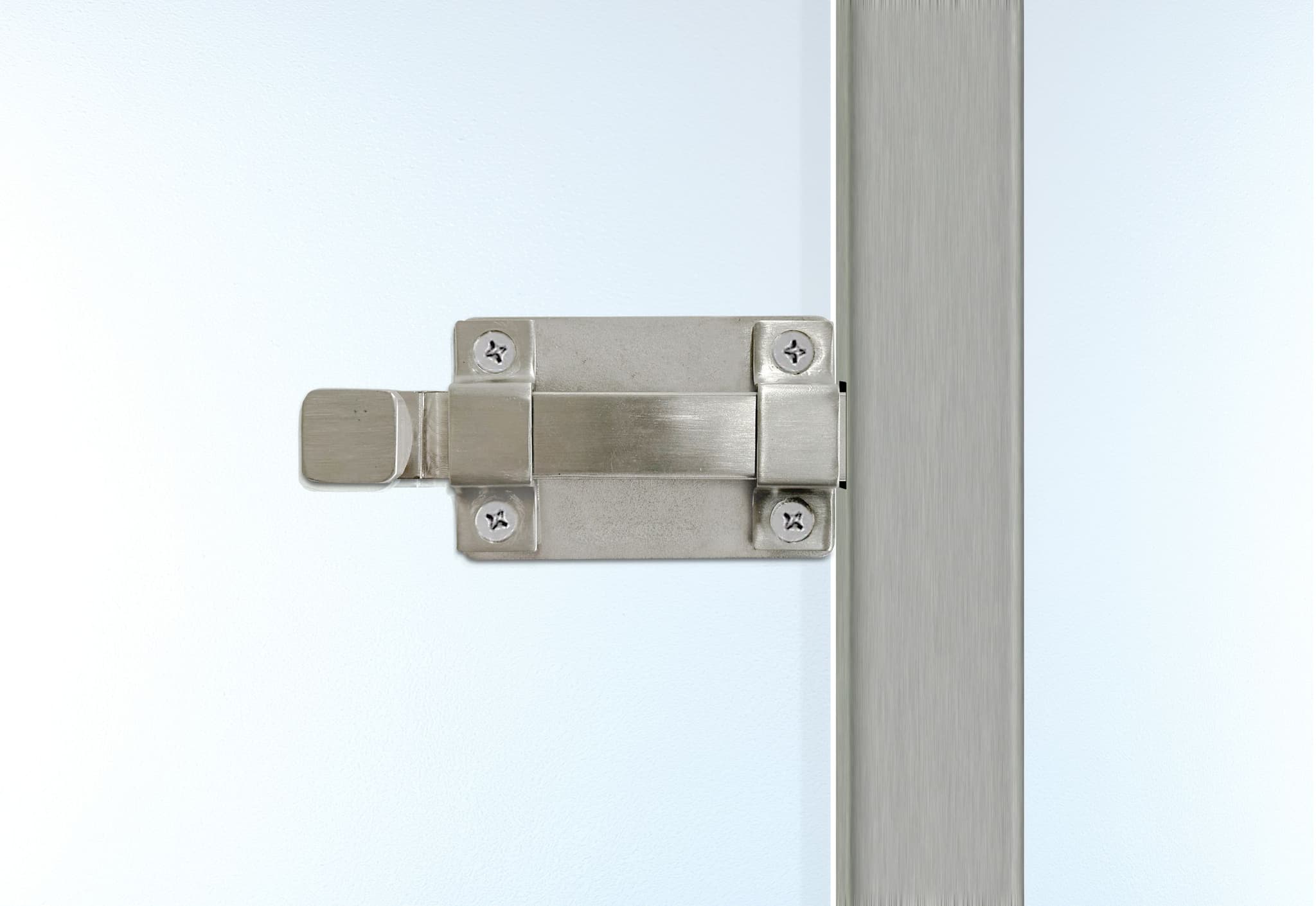

Partition Wall Gate Latch

Gate Locks and Latches

A key-lock gate latch restricts access to staff with the key. A 6 or 8-inch sliding latch holds a gate closed without key control. Both engage the slot built into the receiver post and operate by hand, with nothing to power or maintain.

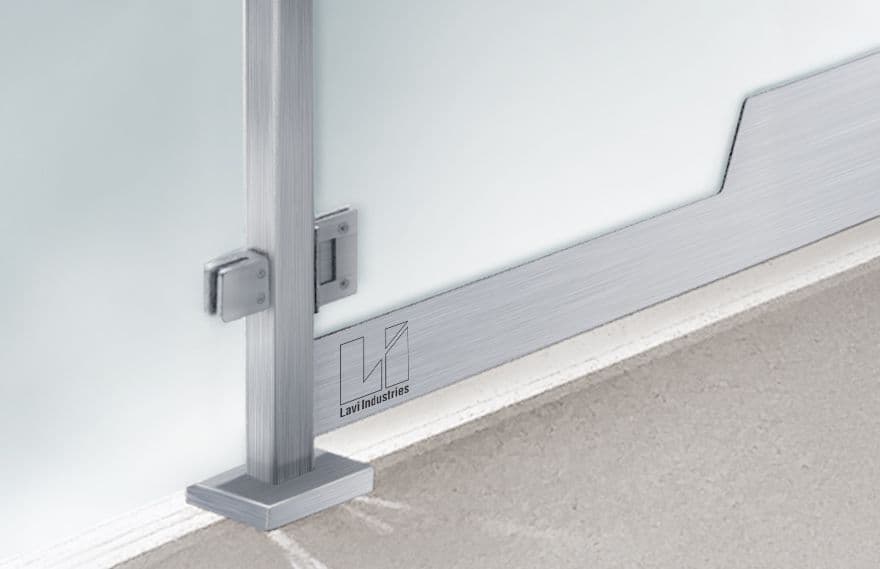

Partition Wall Kick Plate

Push Plates & Kick Plates

Push plates help hide the handprints where people push the gate. Kick plates absorb the impact from carts, luggage, and shoes. Both ship as pairs to cover front and back. Kick plates are available for both walls and gates.

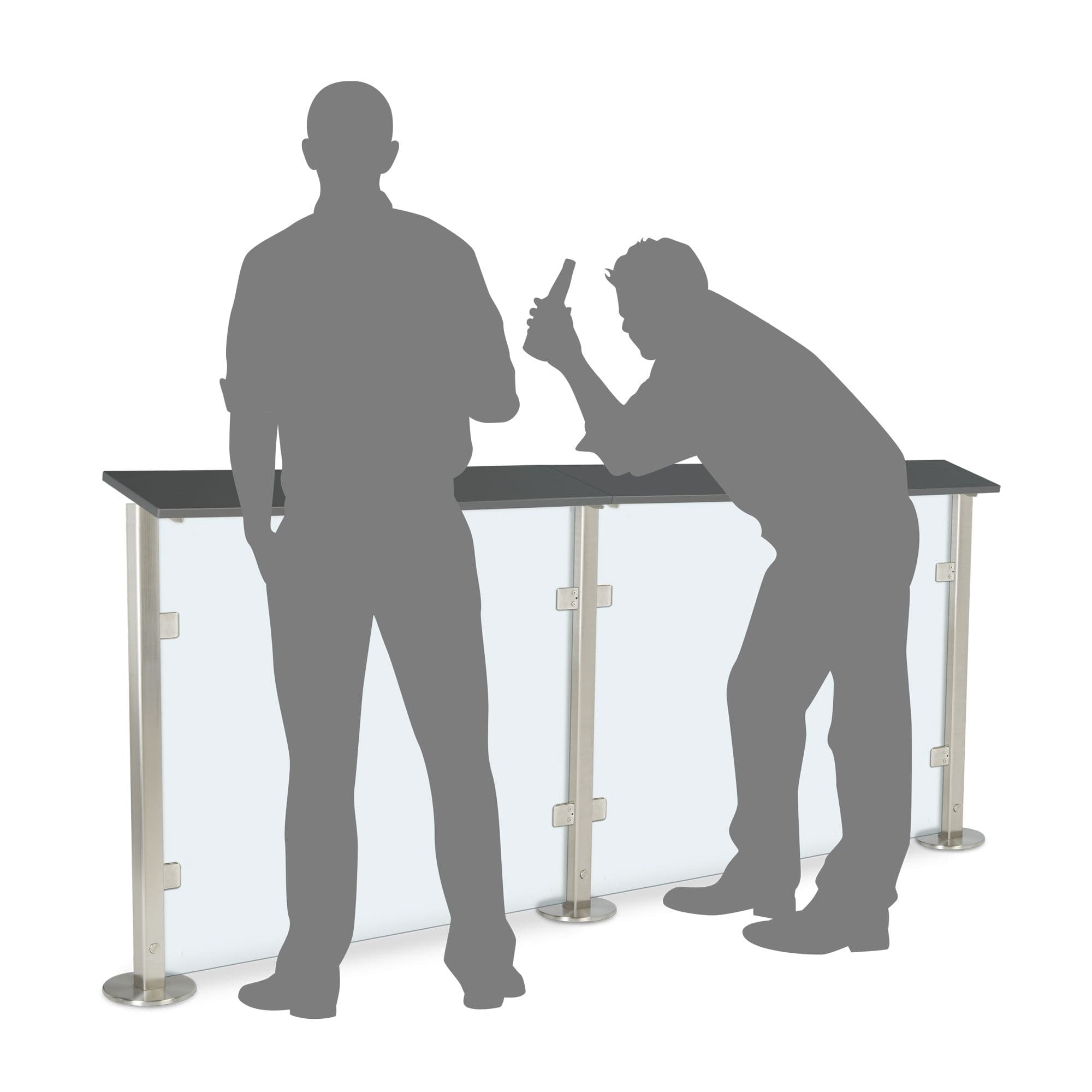

Partition Wall Table Top Illustration

Hospitality Tabletop

A tabletop mounts to a short wall, turning a boundary into a work surface for food and beverage service, lounge seating, and anywhere guests need a place to set something down.

Download Brochure
Queue 3D drawing and rendering book
Design Services

Design Your Project Layout With Lavi's Experts

Lavi's design team maps out where each wall and gate belongs, renders the layout in 3D, and refines it with you before building anything. You see the finished project before you order.

Contact Us About Design

Let's Plan Your Partition Wall

Share a few details about your project, and a Lavi specialist will get back to you with answers, pricing, and next steps.
Prefer to talk now? Call 888.285.8605.

Speak with an expert.

Specify It With Confidence

Everything an architect or project team needs to write and spec your project.

3-Part Spec

Section 10.22.19 Demountable Glazed Partitions, ready to drop into project documents.

Download 3-Part Spec

BIM Files

Posts, walls, and gates modeled for your design software.

Download BIMs

Brochure

Heights, wall and gate sizes, mounts, part numbers, and accessories.

Download Brochure

Specifications

Posts

2 x 2 in Grade MT 316L stainless steel tube (ASTM A554), welded

Post types

End, center, corner, receiver (for gates)

Finish

Satin (brushed), 180-grit, passivated

Heights

42-inches, 48-inches, 60-inches, 72-inches

Wall widths

48 and 60 inches

Walls

3/8 inch tempered glass or 1/2 inch acrylic; clear, frosted, or tinted

Mounting

Magnetic base on steel floor plate, no drilling (for 42 and 48 inch heights); 5.1 inch square floor flange with cover plate ; 3.5 x 5.1 inch cut floor flange with cover plate

Gate widths

24 inches, 32 inches, 40 inches

Gate hardware

Key lock gate latch or 6- or 8-inch sliding latch; push plates

Kick plates

For gates and walls

Load

50 lbf horizontal concentrated load over 1 sq ft

Environment

Indoor and outdoor

Specification

CSI 10 22 19 Demountable Glazed Partitions

Origin

Built in the USA. Made to order. Patent pending


FAQ

How is an architectural partition wall different from a glass railing system?

Glass railing systems are very similar to Architectural Partition Walls. The main difference are the built-in modular gates in the Architectural Partition Wall system. Additionally, short partition walls can stand on non-invasive magnetic bases that don't require core drilling or bolting to the floor, leaving terrazzo floors, tile, and historic buildings unscathed.

Can glass barrier walls be installed without drilling the floor?

Yes, on 42- and 48-inch-tall walls, you can use a magnetic base. A steel floor plate glues to the floor; the magnetic base attaches to it with set screws that go only into the plate, and a cover plate finishes the base. No core-drilling or bolting is required. You can remove the floor plates, along with the system, without leaving marks or damaging the flooring. 60- and 72-inch walls bolt down on flange or cut-flange mounts.

Can the gates be used as emergency exits?

No. The gates are for access control: they swing both ways and close and lock by hand. When a barrier layout needs push-through exit points, Post & Panel breakaway gates open under pressure. Plan exit locations according to your local fire code.

Can Architectural Partition Walls be used outdoors?

Yes. The posts are 316-grade (marine-grade) stainless steel, which resists corrosion indoors and out. Tempered glass and acrylic are naturally weather-resistant.

What height partition wall do I need?

Every height secures a space. 42- and 48-inch walls keep sight lines open and can use removable magnetic bases. 60- and 72-inch walls prevent pass-through, which makes them the most secure choice.

What are the specifications for Architectural Partition Walls & Gates?

Posts are 2 x 2-inch 316-grade stainless steel in 42- to 72-inch heights, carrying 3/8-inch tempered glass or 1/2-inch acrylic walls in 48- or 60-inch widths. Gates come 24, 32, or 40 inches wide. The full table is in the Specifications section above, and the 3-part spec, BIM files, and brochure are available to download.
